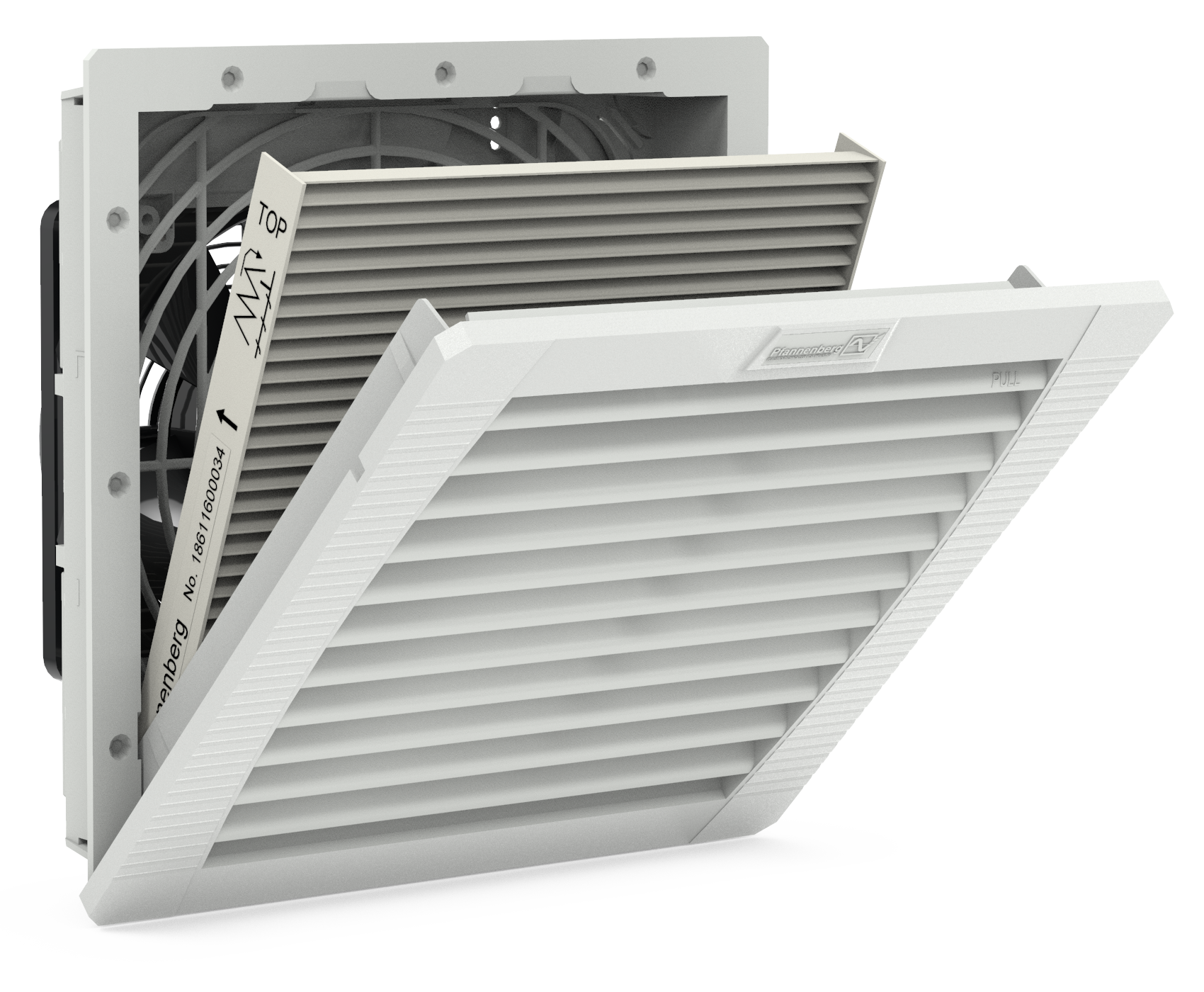

PF 32000 24VDC EMC Type 12 Filterfan
178 mm x 178 mm, RAL 7035
Product number:
11832803055
The electromagnetic compatibility shielded filterfan provides protection against electromagnetic interference by ensuring continuity between the shielding part of the fan and the metal structure of the cabinet. The front cover of this product has the color RAL7035 (Light Gray). The advantages of the series at a glance:
- For reliable use in the area of electromagnetic fields (metallic shielding).
- High air flow (65 CFM) in small package with low energy consumption.
- Secure contact service on the installation cut-out edges without beryllium copper gaskets.
- Uniquely high air flow due to optimized louvre design.
- NEMA Type 12, closed frame prevents unfiltered air from penetrating.
- Includes G4 filter class fluted material filter media that can be replaced easily and in seconds due to the optimized front cover.
- Patented tool-free 4-corner fastening system enables installation in seconds and guarantees a secure hold.
- Poured foam seal facilitates the installation.
- Flat shape and neutral design make a perfect integration into existing machines possible.
- The filterfans can be retrofitted in most applications because the mounting cut-outs are compatible.
- Attenuation at 30 MHz about 71 dB
- Attenuation at 400 MHz about 57 dB
TECHNICAL DATA
Technical Data
- Rated voltage V ±10 %
- DC 24
- Rated frequency Hz ±1 %
- DC
- Unimpeded airflow
- 100 m³/h
- Airflow rate in comb. with exhaust filter
- 55 m³/h
- Number of Fans
- 1
- Power consumption W
- 5 W
- Type of connection
- cable, 2-core, length 310 mm
- Type of fuse | Pre fuse
- gG | 6 A
- IP Protection
- IP55
- NEMA Protection
- TYPE12
- Type of filter
- fluted filter
- Filtration efficiency
- 91 %
- Filter mat quality class according to EN 779
- G4
- Bearing Type
- sleeve bearing
- Ambient temperature range
- -40 °C ... +55 °C
- Housing material
- made of injection-moulded thermoplastic, self-extinguishing, UL 94 VO, UV-resistant
- EMC-Version
- yes
- Increased UV-stability of cover
- yes
- Color
- RAL 7035
- Dimensions cut-out (H | W)
- 178 mm | 178 mm
- Dimensions (H | W | D)
- 202 mm | 202 mm | 87 mm
- Width
- 202 mm
- Depth
- 87 mm
- Height
- 202 mm
- Installation depth
- 81 mm
- Weight (without packaging)
- 0,7 kg
- UL certificate no.
- E489500
- ETIM-Class
- EC000320
- Rated voltage V ±10 %
- DC 24
- Rated frequency Hz ±1 %
- DC
- Unimpeded airflow
- 59 cfm
- Airflow in combination
- 32 cfm
- Number of Fans
- 1
- Power consumption W
- 5 W
- Type of connection
- cable, 2-core, length 310 mm
- Type of fuse | Pre fuse
- gG | 6 A
- NEMA Protection
- TYPE12
- Type of filter
- fluted filter
- Filtration efficiency
- 91 %
- Filter mat quality class according to EN 779
- G4
- Bearing Type
- sleeve bearing
- Ambient temperature range
- -40 °F ... +131 °F
- Housing material
- made of injection-moulded thermoplastic, self-extinguishing, UL 94 VO, UV-resistant
- EMC-Version
- yes
- Increased UV-stability of cover
- yes
- Color
- RAL 7035
- Cut-Out Dimensions
- 7.01 in. | 7.01 in.
- Dimensions (H | W | D)
- 7.95 in. | 7.95 in. | 3.43 in.
- Width
- 7.95 in.
- Depth
- 3.43 in.
- Height
- 7.95 in.
- Installation depth
- 3.19 in.
- Weight (without packaging)
- 1.54 lbs
- UL certificate no.
- E489500
- ETIM-Class
- EC000320
Technical Data
TECHNICAL DRAWINGS
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
Technical Drawings
Dimensions
Technical Drawings
Dimensions

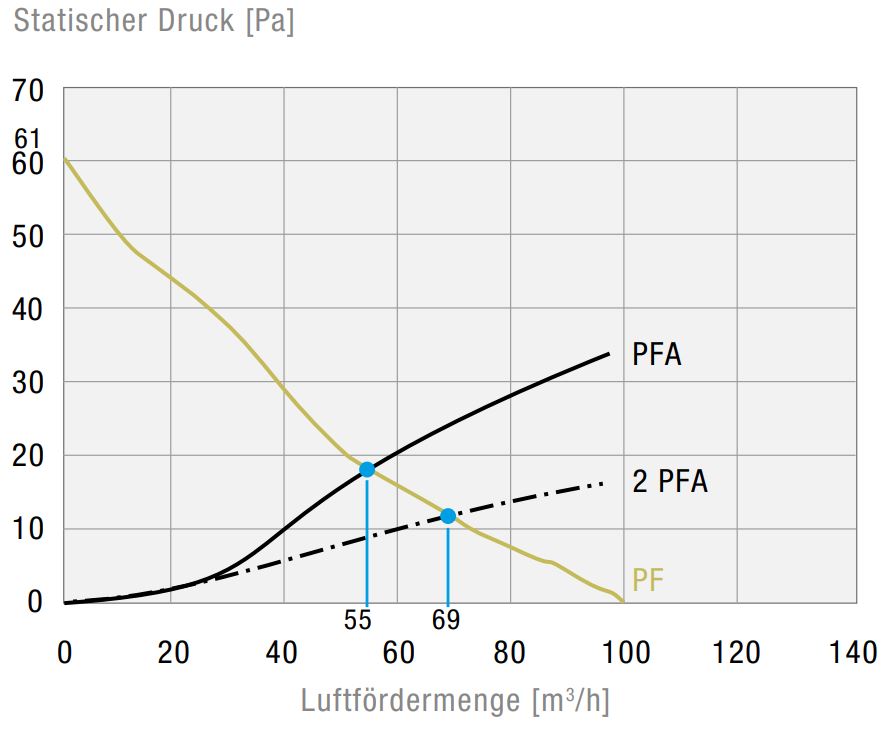

DIAGRAMS
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
![PF 32000 24VDC EMC Type 12 Filterfan]( "PF 32000 24VDC EMC Type 12 Filterfan")
Diagrams
Diagrams
