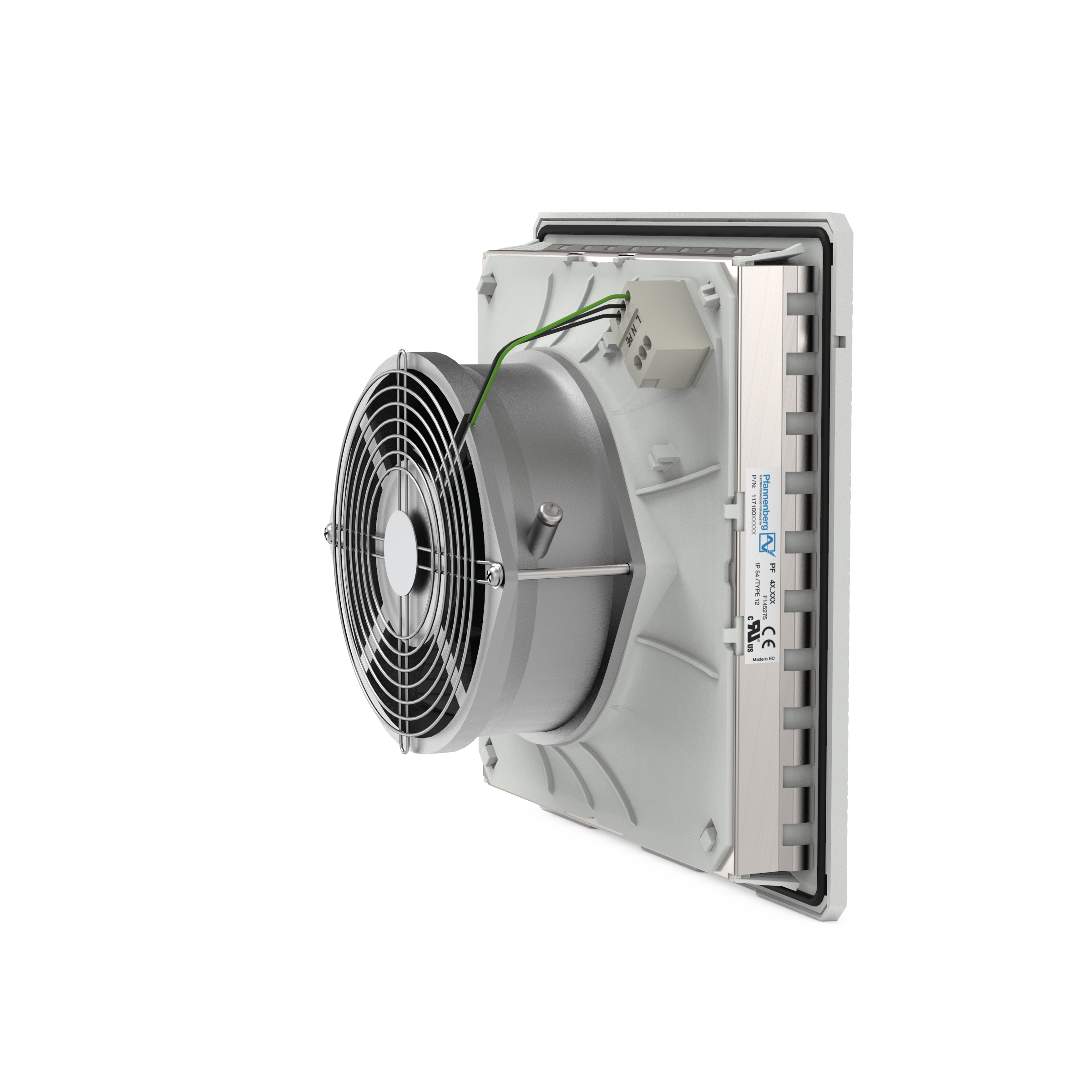

PF 43000 230V EMC Type 12 Filterfan
224 mm x 224 mm, RAL 7035
Product number:
11843103055
The electromagnetic compatibility shielded filterfan provides protection against electromagnetic interference by ensuring continuity between the shielding part of the fan and the metal structure of the cabinet. The front cover of this product has the color RAL7035 (Light Gray). The advantages of the series at a glance:
- For reliable use in the area of electromagnetic fields (metallic shielding).
- High air flow (155 CFM) in small package with low energy consumption.
- Secure contact service on the installation cut-out edges without beryllium copper gaskets.
- Uniquely high air flow due to optimized louvre design.
- NEMA Type 12, closed frame prevents unfiltered air from penetrating.
- Includes G4 filter class fluted material filter media that can be replaced easily and in seconds due to the optimized front cover.
- Patented tool-free 4-corner fastening system enables installation in seconds and guarantees a secure hold.
- Poured foam seal facilitates the installation.
- Flat shape and neutral design make a perfect integration into existing machines possible.
- The filterfans can be retrofitted in most applications because the mounting cut-outs are compatible.
- Attenuation at 30 MHz about 71 dB
- Attenuation at 400 MHz about 57 dB
TECHNICAL DATA
Technical Data
- Rated voltage V ±10 %
- AC 230
- Rated frequency Hz ±1 %
- 50 Hz | 60 Hz
- Unimpeded airflow
- 233 m³/h | 265 m³/h
- Airflow rate in comb. with exhaust filter
- 180 m³/h | 207 m³/h
- Number of Fans
- 1
- Power consumption W
- 45 W | 39 W
- Type of connection
- spring-type terminal
- Type of fuse | Pre fuse
- gG | 6 A
- IP Protection
- IP55
- NEMA Protection
- TYPE12
- Type of filter
- fluted filter
- Filtration efficiency
- 91 %
- Filter mat quality class according to EN 779
- G4
- Bearing Type
- sleeve bearing
- Ambient temperature range
- -40 °C ... +55 °C
- Housing material
- made of injection-moulded thermoplastic, self-extinguishing, UL 94 VO, UV-resistant
- EMC-Version
- yes
- Increased UV-stability of cover
- yes
- Color
- RAL 7035
- Dimensions cut-out (H | W)
- 224 mm | 224 mm
- Dimensions (H | W | D)
- 252 mm | 252 mm | 119 mm
- Width
- 252 mm
- Depth
- 119 mm
- Height
- 252 mm
- Installation depth
- 113 mm
- Weight (without packaging)
- 1,83 kg
- UL certificate no.
- E489500
- ETIM-Class
- EC000320
- Rated voltage V ±10 %
- AC 230
- Rated frequency Hz ±1 %
- 50 Hz | 60 Hz
- Unimpeded airflow
- 137 cfm | 156 cfm
- Airflow in combination
- 106 cfm | 122 cfm
- Number of Fans
- 1
- Power consumption W
- 45 W | 39 W
- Type of connection
- spring-type terminal
- Type of fuse | Pre fuse
- gG | 6 A
- NEMA Protection
- TYPE12
- Type of filter
- fluted filter
- Filtration efficiency
- 91 %
- Filter mat quality class according to EN 779
- G4
- Bearing Type
- sleeve bearing
- Ambient temperature range
- -40 °F ... +131 °F
- Housing material
- made of injection-moulded thermoplastic, self-extinguishing, UL 94 VO, UV-resistant
- EMC-Version
- yes
- Increased UV-stability of cover
- yes
- Color
- RAL 7035
- Cut-Out Dimensions
- 8.82 in. | 8.82 in.
- Dimensions (H | W | D)
- 9.92 in. | 252 in. | 4.69 in.
- Width
- 252 in.
- Depth
- 4.69 in.
- Height
- 9.92 in.
- Installation depth
- 4.45 in.
- Weight (without packaging)
- 4.04 lbs
- UL certificate no.
- E489500
- ETIM-Class
- EC000320
