Pyra PY L-S LED Multi light
120 V DC, 115, 230 V AC, LED, Amber,
Product number:
21513644055
The compact LED light with amber lens and grey base not only adapts to many applications, but is particularly impressive thanks to its safe and simple installation
- Mounting option via external brackets or internal holes
- Electrical contact only in the assembled lower part. Cables can be connected according to the junction box principle. No 3-hand assembly (device - screwdriver - wire). No pull/pressure on the terminals or other components, no squeezing of the cables
- brightness: 76 cd (reducible)
- Various signal types and flashing frequencies can be selected (internal, RGB also external): continuous light, blinking light ( 1 / 2 Hz ), flashing light ( 0.1 / 0.5 / 0.75 / 1 / 2 Hz )
- Multi voltage power supply unit 90 - 265 V AC and 108 - 132 V DC
- Housing and lens are made of impact-resistant polycarbonate (IK 08)
- Protection class: IP 66 (EN 60529), NEMA TYPE 4/4x, IK 08 (EN 50102)
- Maximum viewing distance: 202m
- Service life of the light sourc: > 50000h
- Dimensions: LxWxH 86 x 110 x 81 mm
- Lens colours: clear, yellow, orange, red, green, blue and the RGB version where the colour is freely adjustable
- Operating temperature: -40C - +55C
- 10 years warranty
TECHNICAL DATA
Technical Data
- Signaling area (L | W | H)
- 2,1 m | 2 m | 5,6 m
- Signaling area width
- 2 m
- Signaling area height
- 5,6 m
- Signaling area length
- 2,1 m
- Lens Color
- Amber
- Housing Color
- RAL 7035
- Voltage Range (DC) V
- 108-132 V DC
- Voltage Range (AC) V
- 90-265 V AC
- Rated Voltage(s) (DC) V
- 120 V DC
- Rated Voltage(s) (AC) V
- 115, 230 V AC
- Type of Current
- AC/DC
- Operating Temperature
- -40 °C ... +55 °C
- IP Protection System
- 66
- NEMA
- 4/4X
- Housing material
- PC / ABS blend
- El. Protection Class
- 2
- Max. Relative Humidity
- 90 %
- Duty Cycle
- 100 %
- Max. Current Consumption
- 0,05 A
- Lamp Type
- LED
- Operating Mode
- Steady-On Light, Blinking Light, Flashing Light
- Light Intensity cd
- 34 cd
- Flash Rate Hz
- 1 Hz
- AS-i
- not specified
- IO-Link
- no
- M12-connection
- no
- Monitored
- no
- Dimensions (H | W | D)
- 86 mm | 110 mm | 81 mm
- Weight (without packaging)
- 0,17 kg
- ETIM-Class
- EC002975
- Signaling area (L | W | H)
- 6.89 ft. | 6.56 ft. | 18.38 ft.
- Signaling area width
- 6.56 ft.
- Signaling area height
- 18.38 ft.
- Signaling area length
- 6.89 ft.
- Lens Color
- Amber
- Housing Color
- RAL 7035
- Voltage Range (DC) V
- 108-132 V DC
- Voltage Range (AC) V
- 90-265 V AC
- Rated Voltage(s) (DC) V
- 120 V DC
- Rated Voltage(s) (AC) V
- 115, 230 V AC
- Type of Current
- AC/DC
- Operating Temperature
- -40 °F ... +131 °F
- IP Protection System
- 66
- NEMA
- 4/4X
- Housing material
- PC / ABS blend
- El. Protection Class
- 2
- Max. Relative Humidity
- 90 %
- Duty Cycle
- 100 %
- Max. Current Consumption
- 0.05 A
- Lamp Type
- LED
- Operating Mode
- Steady-On Light, Blinking Light, Flashing Light
- Light Intensity cd
- 34 cd
- Flash Rate Hz
- 1 Hz
- AS-i
- not specified
- IO-Link
- no
- M12-connection
- no
- Monitored
- no
- Dimensions (H | W | D)
- 3.39 in. | 4.33 in. | 3.19 in.
- Weight (without packaging)
- 0.36 lbs
- ETIM-Class
- EC002975
Technical Data
TECHNICAL DRAWINGS
![Pyra PY L-S LED Multi light]( "Pyra PY L-S LED Multi light")
![Pyra PY L-S LED Multi light]( "Pyra PY L-S LED Multi light")
![Pyra PY L-S LED Multi light]( "Pyra PY L-S LED Multi light")
![Pyra PY L-S LED Multi light]( "Pyra PY L-S LED Multi light")
![Pyra PY L-S LED Multi light]( "Pyra PY L-S LED Multi light")
![Pyra PY L-S LED Multi light]( "Pyra PY L-S LED Multi light")
![Pyra PY L-S LED Multi light]( "Pyra PY L-S LED Multi light")
![Pyra PY L-S LED Multi light]( "Pyra PY L-S LED Multi light")
![Pyra PY L-S LED Multi light]( "Pyra PY L-S LED Multi light")
![Pyra PY L-S LED Multi light]( "Pyra PY L-S LED Multi light")
![Pyra PY L-S LED Multi light]( "Pyra PY L-S LED Multi light")
![Pyra PY L-S LED Multi light]( "Pyra PY L-S LED Multi light")
Technical Drawings
Technical Drawings
MULTICAD DATA
Multicad Data
ACCESSORIES
Accessories

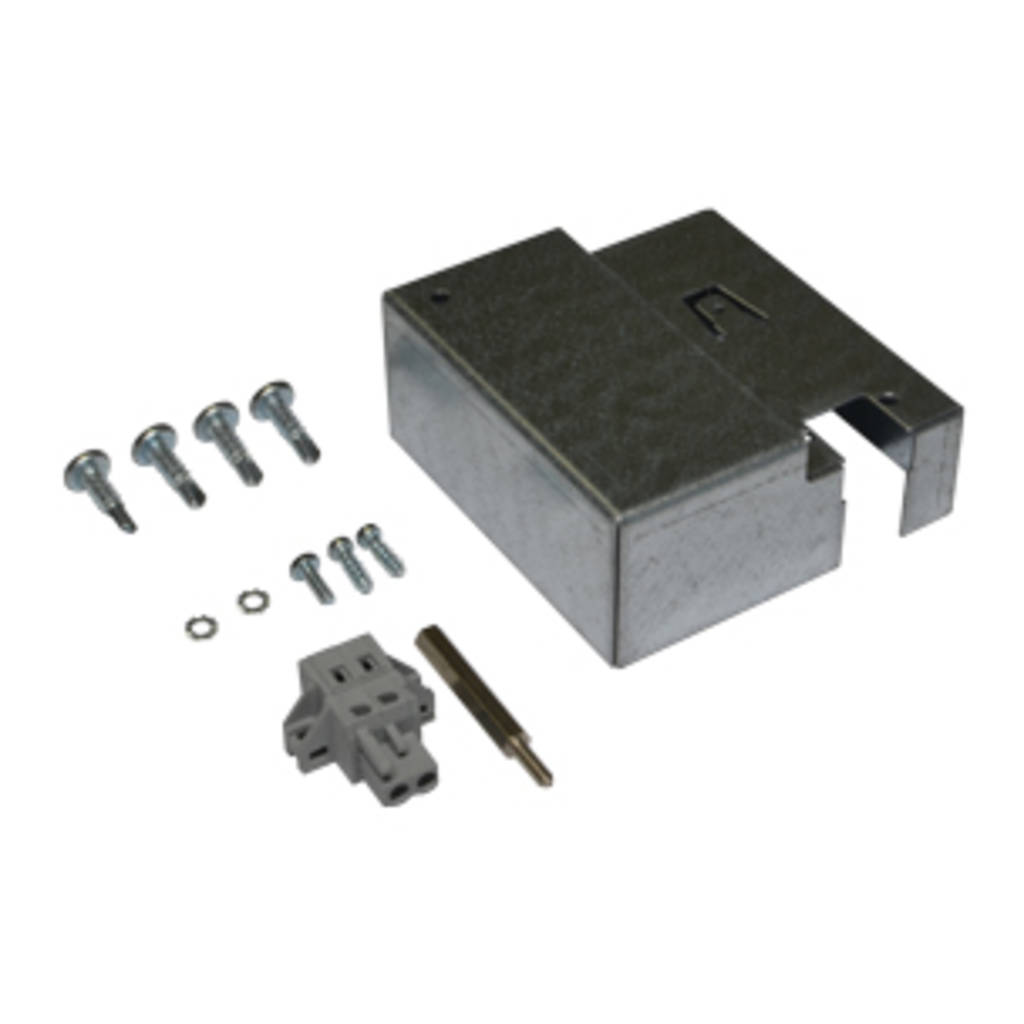

Recommended Accessories for Pyra PY L-S LED Multi light
Accessories
Recommended Accessories for Pyra PY L-S LED Multi light
DOWNLOADS
Downloads
| Description | Language | Type | Size | Link |
|---|---|---|---|---|
| Manual_PY_L-S | Englisch | 1.86 MB | Download | |
| 3D-model_IGS_SAT_STEP_PYX-S_05_PYL-S | German | ZIP | 1.12 MB | Download |
| EAC_Certificate_Signaling | German | 293.12 KB | Download | |
| EAC_Certificate_Signaling | Englisch | 293.12 KB | Download | |
| Product_Sheet_DE_PYL-S_(RGB) | German | 600.41 KB | Download | |
| UL_Certificate_PY-S | German | 190.27 KB | Download | |
| UL_Certificate_PY-S | Englisch | 190.27 KB | Download | |
| 3D-model_IGS_SAT_STEP_PYX-S_05_PYL-S | Englisch | ZIP | 1.12 MB | Download |
| Product_Sheet_EN_PYL-S_(RGB) | Englisch | 598.78 KB | Download | |
| Manual_PY_L-S | German | 1.86 MB | Download | |
| PFA.21513644055 | German | tables.type.file_edz | 336.44 KB | Download |
| PFA.21513644055 | Englisch | tables.type.file_edz | 336.44 KB | Download |
