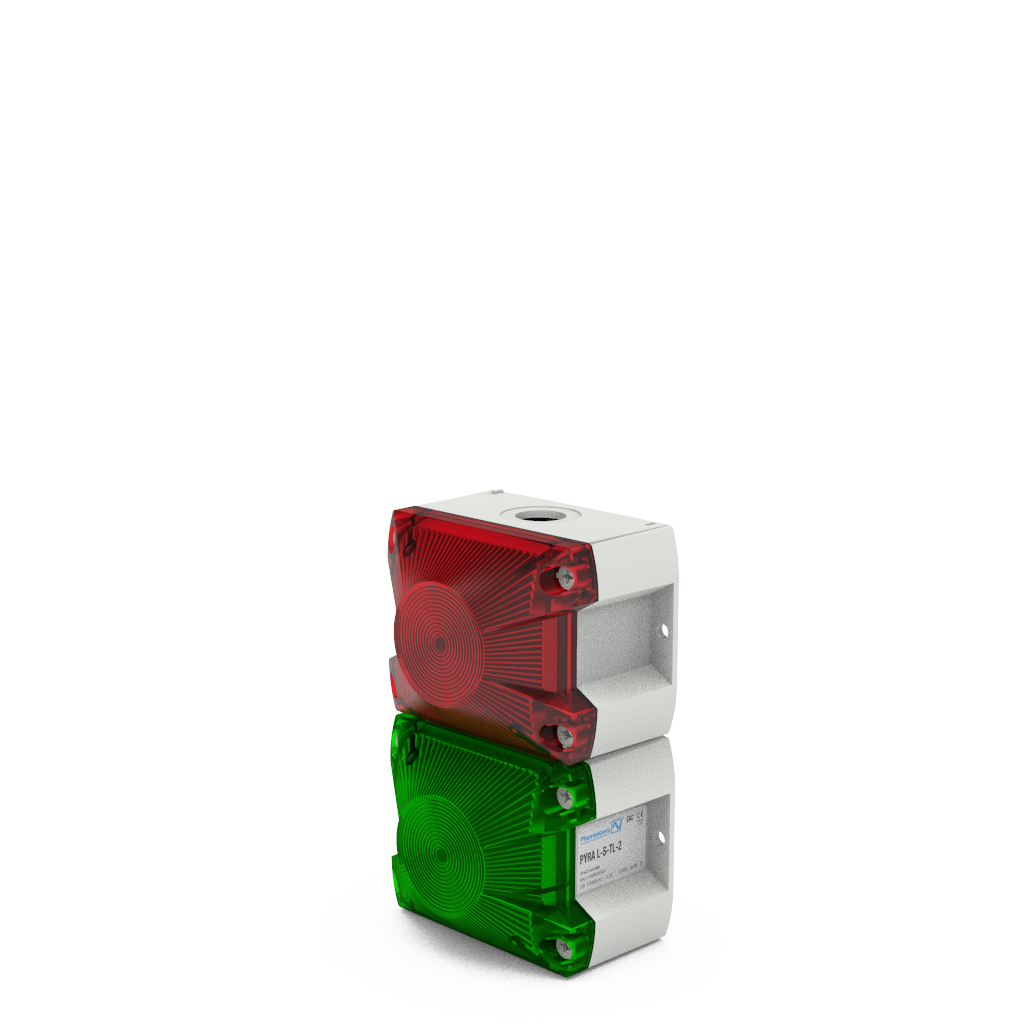

Pyra PY-TL LED Traffic Light, 2 stages
120 V DC, 115, 230 V AC, LED, Red, Green,
Product number:
21514642055
PYRA LED 2 stage traffic light completely assembled.
- Extremely bright multifunctional LED light 2 stages in red, green
- max. brightness: 76 cd (reducible) per unit
- Selectable signaling modes: continuous light, blinking light, flashing light
- Selectable blink & flash frequencies - Adaptable to all your applications - select the frequency your gadget requires and boost the perceptibility.
- Multi voltage power supply unit 90 - 253 V AC
- Housing and lens are made of impact-resistant polycarbonate (IK 08)
- Service life of the light source: > 50000h
- Dimensions: LxWxH 86 x 110 x 81 mm per stage
- Maximum viewing distance: 202m
- Protection class: IP 66 (EN 60529), NEMA TYPE 4/4x, IK 08 (EN 50102)
- Operating temperature: -40C - +55C
- 10 years warranty
TECHNICAL DATA
Technical Data
- Lens Color
- Red, Green
- Housing Color
- RAL 7035
- Voltage Range (DC) V
- 108-132 V DC
- Voltage Range (AC) V
- 90-265 V AC
- Rated Voltage(s) (DC) V
- 120 V DC
- Rated Voltage(s) (AC) V
- 115, 230 V AC
- Type of Current
- AC/DC
- Operating Temperature
- -40 °C ... +55 °C
- IP Protection System
- 66
- NEMA
- 4/4X
- Housing material
- PC / ABS blend
- El. Protection Class
- 2
- Max. Relative Humidity
- 90 %
- Duty Cycle
- 100 %
- Max. Current Consumption
- 0,05 A
- Lamp Type
- LED
- Operating Mode
- Steady-On Light, Blinking Light, Flashing Light
- Light Intensity cd
- 48 cd
- Flash Rate Hz
- 1 Hz
- AS-i
- not specified
- IO-Link
- no
- M12-connection
- no
- Monitored
- no
- Dimensions (H | W | D)
- 173 mm | 110 mm | 81 mm
- Weight (without packaging)
- 0,47 kg
- ETIM-Class
- EC001353
- Lens Color
- Red, Green
- Housing Color
- RAL 7035
- Voltage Range (DC) V
- 108-132 V DC
- Voltage Range (AC) V
- 90-265 V AC
- Rated Voltage(s) (DC) V
- 120 V DC
- Rated Voltage(s) (AC) V
- 115, 230 V AC
- Type of Current
- AC/DC
- Operating Temperature
- -40 °F ... +131 °F
- IP Protection System
- 66
- NEMA
- 4/4X
- Housing material
- PC / ABS blend
- El. Protection Class
- 2
- Max. Relative Humidity
- 90 %
- Duty Cycle
- 100 %
- Max. Current Consumption
- 0.05 A
- Lamp Type
- LED
- Operating Mode
- Steady-On Light, Blinking Light, Flashing Light
- Light Intensity cd
- 48 cd
- Flash Rate Hz
- 1 Hz
- AS-i
- not specified
- IO-Link
- no
- M12-connection
- no
- Monitored
- no
- Dimensions (H | W | D)
- 6.81 in. | 4.33 in. | 3.19 in.
- Weight (without packaging)
- 1.03 lbs
- ETIM-Class
- EC001353
