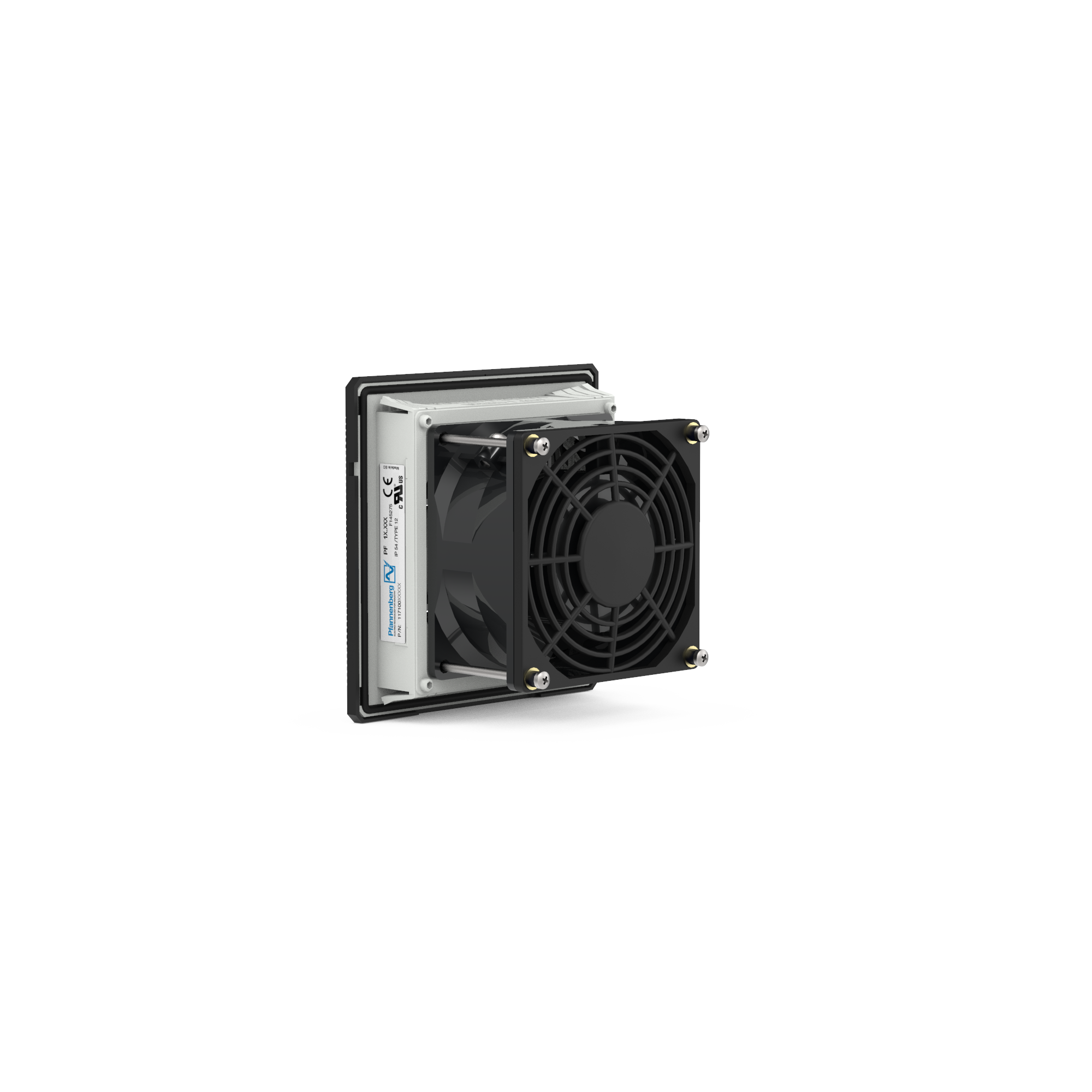

PF 11000 230V Type 12 Filterfan
92 mm x 92 mm, RAL 9011
Product number:
11611101050
The 4th generation Pfannenberg filterfans is the culmination of 60 years experience in thermal management. Using filterfans is the most efficient and cost-effective way to remove heat from the electrical cabinet at ambient temperatures below target internal. The front cover of this product has the color RAL9011 (black). The advantages of the series at a glance:
- High air flow (17 CFM) in small package with low energy consumption.
- Uniquely high air flow due to optimized louvre design.
- NEMA Type 12, closed frame prevents unfiltered air from penetrating.
- Includes synthetic fiber filter media with IP 54 protection.
- Patented tool-free 4-corner fastening system enables installation in seconds and guarantees a secure hold.
- Poured foam seal facilitates the installation.
- Flat shape and neutral design make a perfect integration into existing machines possible
- The filterfans can be retrofitted in most applications because the mounting cut-outs are compatible
TECHNICAL DATA
Technical Data
- Rated voltage V ±10 %
- AC 230 / 230 V
- Rated frequency Hz ±1 %
- 50 Hz | 60 Hz
- Unimpeded airflow
- 19 m³/h | 24 m³/h
- Airflow rate in comb. with exhaust filter
- 12 m³/h | 14 m³/h
- Number of Fans
- 1
- Power consumption W
- 12 W | 11 W
- Type of connection
- cable, 2-core, length 310 mm
- Type of fuse | Pre fuse
- gG | 6 A
- IP Protection
- IP54
- NEMA Protection
- TYPE12
- Type of filter
- fleece filter mat
- Filtration efficiency
- 88 %
- Filter mat quality class according to EN 779
- G4
- Bearing Type
- sleeve bearing!!!
- Service life L10 (+ 40 °C)
- 55,000h h
- Ambient temperature range
- -40 °C ... +55 °C
- Housing material
- made of injection-moulded thermoplastic, self-extinguishing, UL 94 VO!!!
- EMC-Version
- no
- Increased UV-stability of cover
- no
- Color
- RAL 9011
- Dimensions cut-out (H | W)
- 92 mm | 92 mm
- Dimensions (H | W | D)
- 109 mm | 109 mm | 66 mm
- Width
- 109 mm
- Depth
- 66 mm
- Height
- 109 mm
- Installation depth
- 62 mm
- Weight (without packaging)
- 0,55 kg
- UL certificate no.
- E489500
- ETIM-Class
- EC000320
- Rated voltage V ±10 %
- AC 230 / 230 V
- Rated frequency Hz ±1 %
- 50 Hz | 60 Hz
- Unimpeded airflow
- 11 cfm | 17 cfm
- Airflow in combination
- 7 cfm | 11 cfm
- Number of Fans
- 1
- Power consumption W
- 12 W | 11 W
- Type of connection
- cable, 2-core, length 310 mm
- Type of fuse | Pre fuse
- gG | 6 A
- NEMA Protection
- TYPE12
- Type of filter
- fleece filter mat
- Filtration efficiency
- 88 %
- Filter mat quality class according to EN 779
- G4
- Bearing Type
- sleeve bearing!!!
- Service life L10 (+ 40 °C)
- 55,000h h
- Ambient temperature range
- -40 °F ... +131 °F
- Housing material
- made of injection-moulded thermoplastic, self-extinguishing, UL 94 VO!!!
- EMC-Version
- no
- Increased UV-stability of cover
- no
- Color
- RAL 9011
- Cut-Out Dimensions
- 3.62 in. | 3.62 in.
- Dimensions (H | W | D)
- 4.29 in. | 4.29 in. | 2.6 in.
- Width
- 4.29 in.
- Depth
- 2.6 in.
- Height
- 4.29 in.
- Installation depth
- 2.44 in.
- Weight (without packaging)
- 1.21 lbs
- UL certificate no.
- E489500
- ETIM-Class
- EC000320
Technical Data
TECHNICAL DRAWINGS
![PF 11000 230V Type 12 Filterfan]( "PF 11000 230V Type 12 Filterfan")
![PF 11000 230V Type 12 Filterfan]( "PF 11000 230V Type 12 Filterfan")
![PF 11000 230V Type 12 Filterfan]( "PF 11000 230V Type 12 Filterfan")
![PF 11000 230V Type 12 Filterfan]( "PF 11000 230V Type 12 Filterfan")
![PF 11000 230V Type 12 Filterfan]( "PF 11000 230V Type 12 Filterfan")
![PF 11000 230V Type 12 Filterfan]( "PF 11000 230V Type 12 Filterfan")
![PF 11000 230V Type 12 Filterfan]( "PF 11000 230V Type 12 Filterfan")
![PF 11000 230V Type 12 Filterfan]( "PF 11000 230V Type 12 Filterfan")
![PF 11000 230V Type 12 Filterfan]( "PF 11000 230V Type 12 Filterfan")
![PF 11000 230V Type 12 Filterfan]( "PF 11000 230V Type 12 Filterfan")
![PF 11000 230V Type 12 Filterfan]( "PF 11000 230V Type 12 Filterfan")
![PF 11000 230V Type 12 Filterfan]( "PF 11000 230V Type 12 Filterfan")
Technical Drawings
Dimensions
Technical Drawings
Dimensions
