PF 11000 24VDC Type 12 Filterfan

92 mm x 92 mm, RAL 7035

Product number: 11611801055

more less

The 4th generation Pfannenberg filterfans is the culmination of 60 years experience in thermal management. Using filterfans is the most efficient and cost-effective way to remove heat from the electrical cabinet at ambient temperatures below target internal. The front cover of this product has the color RAL7035 (Light Gray). The advantages of the series at a glance:

High air flow (17 CFM) in small package with low energy consumption.
Uniquely high air flow due to optimized louvre design.
NEMA Type 12, closed frame prevents unfiltered air from penetrating.

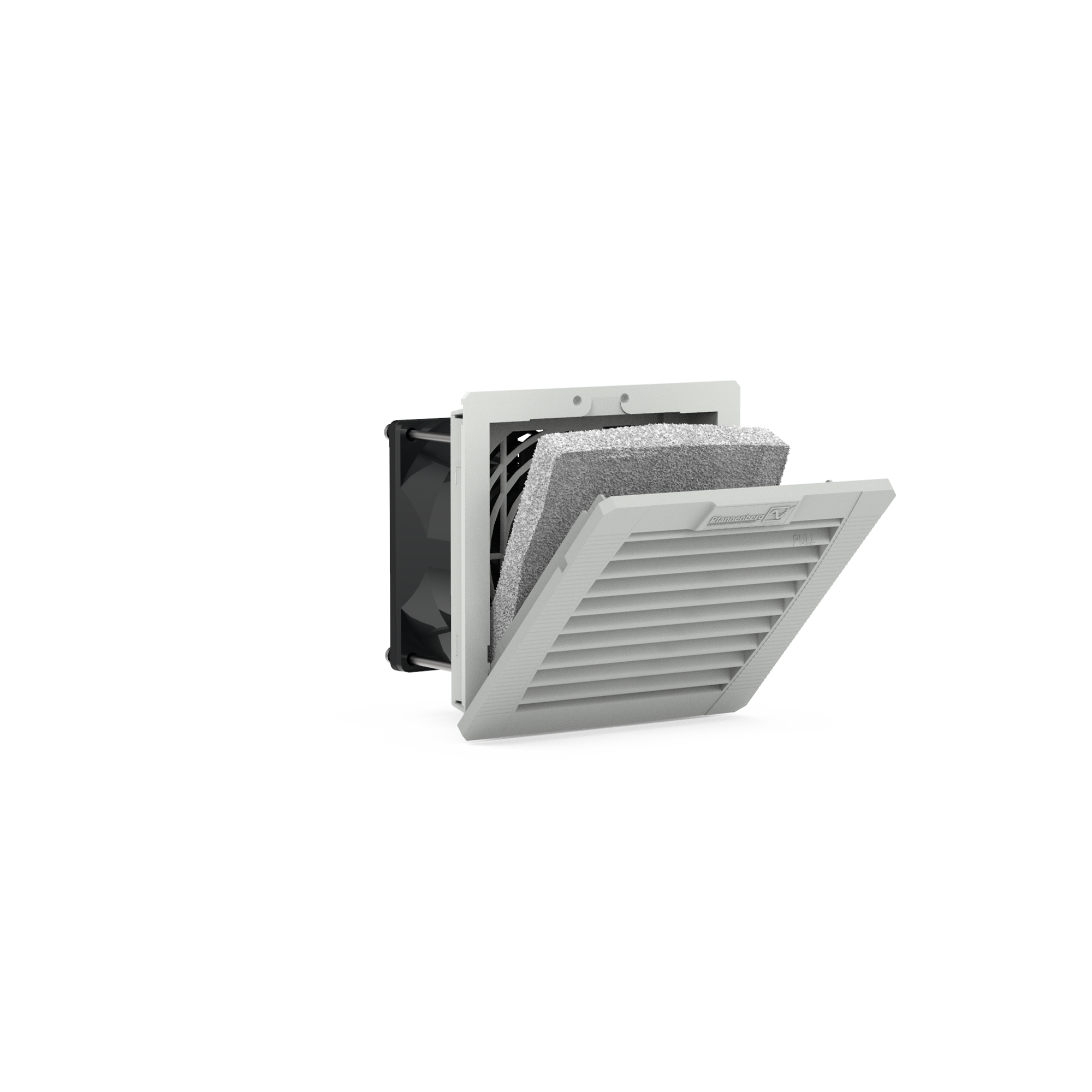

Includes synthetic fiber filter media with IP 54 protection.
Patented tool-free 4-corner fastening system enables installation in seconds and guarantees a secure hold.
Poured foam seal facilitates the installation.
Flat shape and neutral design make a perfect integration into existing machines possible
The filterfans can be retrofitted in most applications because the mounting cut-outs are compatible

Description

High air flow (17 CFM) in small package with low energy consumption.
Uniquely high air flow due to optimized louvre design.
NEMA Type 12, closed frame prevents unfiltered air from penetrating.
Includes synthetic fiber filter media with IP 54 protection.
Patented tool-free 4-corner fastening system enables installation in seconds and guarantees a secure hold.
Poured foam seal facilitates the installation.
Flat shape and neutral design make a perfect integration into existing machines possible
The filterfans can be retrofitted in most applications because the mounting cut-outs are compatible

TECHNICAL DATA

Technical Data

Rated voltage V ±10 %: DC 24 / 24 V
Rated frequency Hz ±1 %: DC

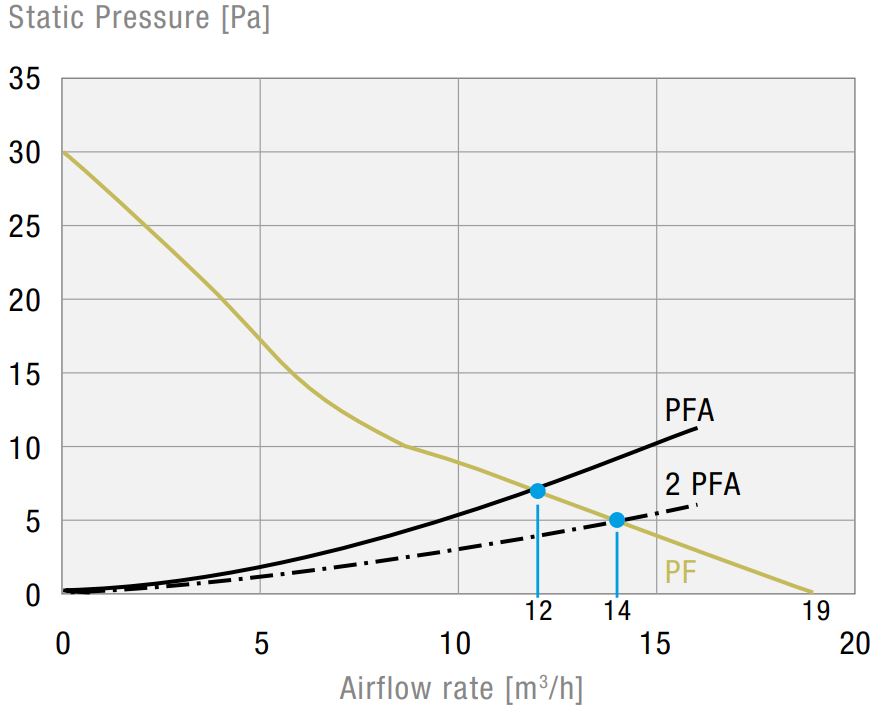

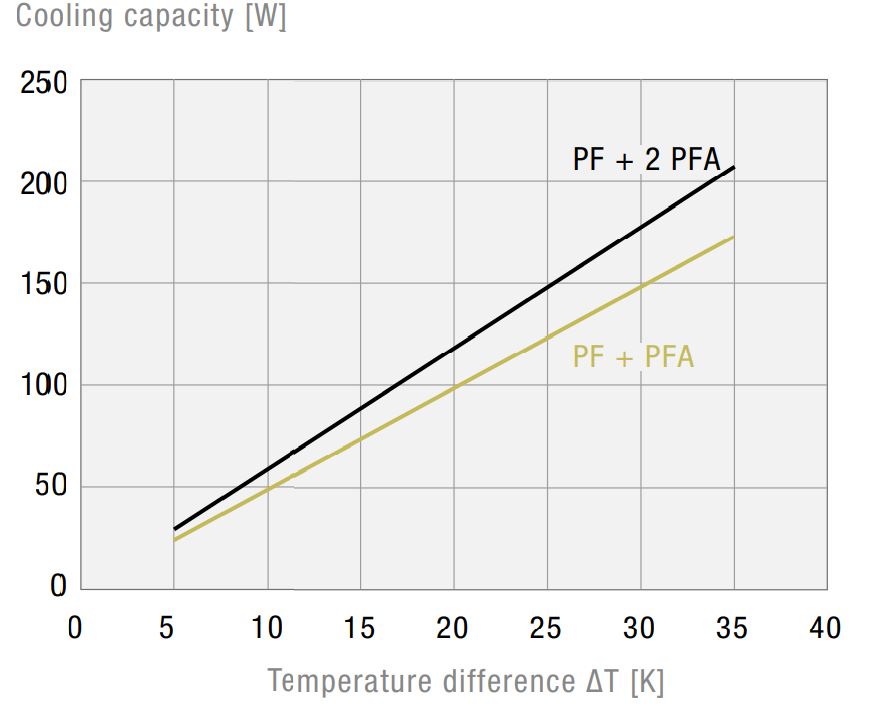

Unimpeded airflow: 19 m³/h
Airflow rate in comb. with exhaust filter: 12 m³/h
Number of Fans: 1
Power consumption W: 2,4 W | 2,4 W
Type of connection: cable, 2-core, length 310 mm
Type of fuse | Pre fuse: gG | 6 A
IP Protection: IP54
NEMA Protection: TYPE12
Type of filter: fleece filter mat
Filtration efficiency: 88 %
Filter mat quality class according to EN 779: G4
Bearing Type: sleeve bearing
Service life L10 (+ 40 °C): 70,000h h
Ambient temperature range: -40 °C ... +55 °C
Housing material: made of injection-moulded thermoplastic, self-extinguishing, UL 94 VO!!!
EMC-Version: no
Increased UV-stability of cover: no
Color: RAL 7035

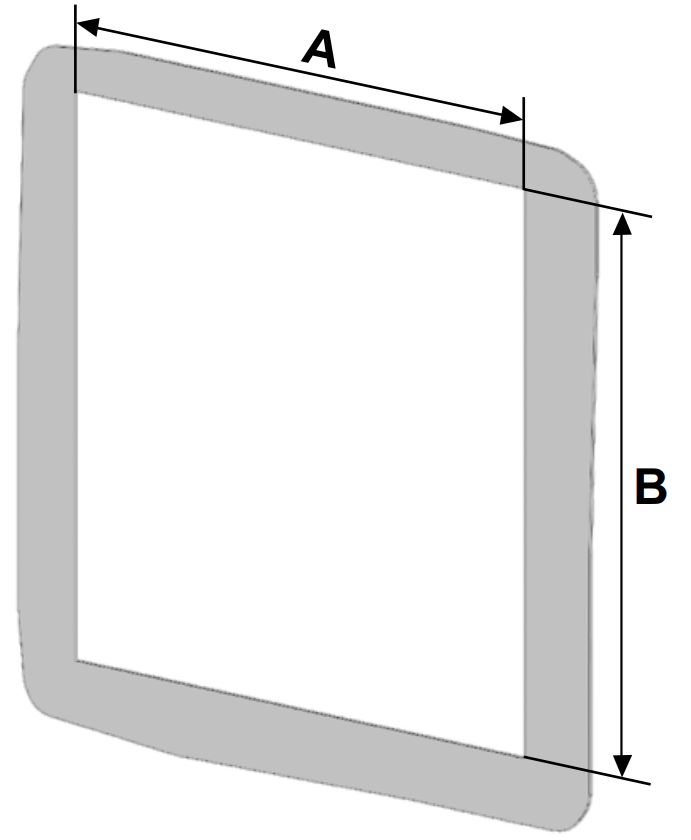

Dimensions cut-out (H | W): 92 mm | 92 mm

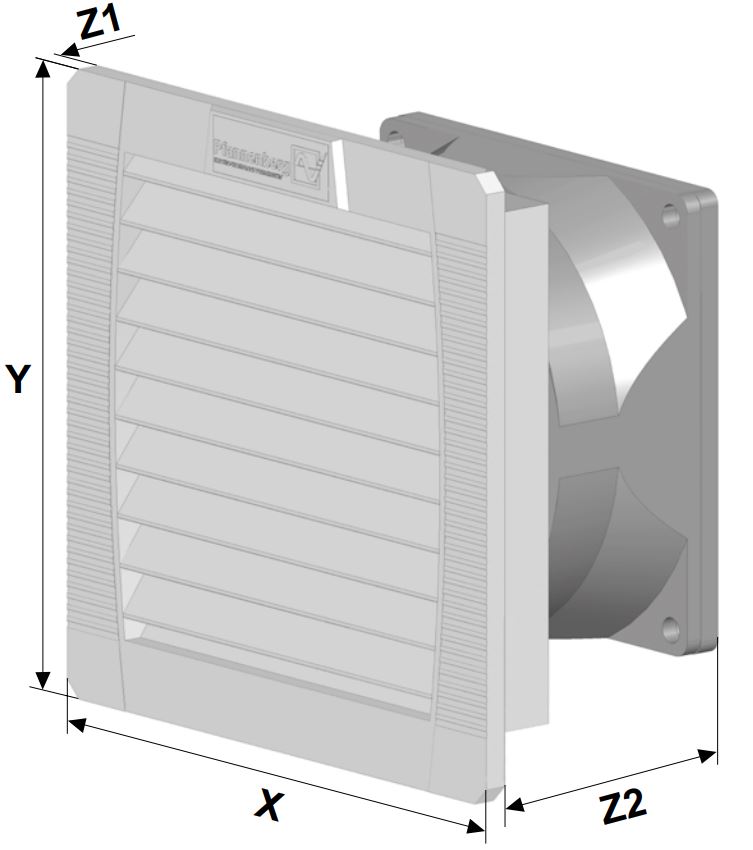

Dimensions (H | W | D): 109 mm | 109 mm | 53 mm
Width: 109 mm
Depth: 53 mm
Height: 109 mm
Installation depth: 49 mm
Weight (without packaging): 0,16 kg
UL certificate no.: E489500
ETIM-Class: EC000320
Rated voltage V ±10 %: DC 24 / 24 V
Rated frequency Hz ±1 %: DC
Unimpeded airflow: 11 cfm | 17 cfm
Airflow in combination: 7 cfm | 11 cfm
Number of Fans: 1
Power consumption W: 2,4 W | 2,4 W
Type of connection: cable, 2-core, length 310 mm
Type of fuse | Pre fuse: gG | 6 A
NEMA Protection: TYPE12
Type of filter: fleece filter mat
Filtration efficiency: 88 %
Filter mat quality class according to EN 779: G4
Bearing Type: sleeve bearing
Service life L10 (+ 40 °C): 70,000h h
Ambient temperature range: -40 °F ... +131 °F
Housing material: made of injection-moulded thermoplastic, self-extinguishing, UL 94 VO!!!
EMC-Version: no
Increased UV-stability of cover: no
Color: RAL 7035
Cut-Out Dimensions: 3.62 in. | 3.62 in.
Dimensions (H | W | D): 4.29 in. | 4.29 in. | 2.09 in.
Width: 4.29 in.
Depth: 2.09 in.
Height: 4.29 in.
Installation depth: 2.44 in.
Weight (without packaging): 0.35 lbs
UL certificate no.: E489500
ETIM-Class: EC000320

Technical Data

Rated voltage V ±10 %: DC 24 / 24 V
Rated frequency Hz ±1 %: DC

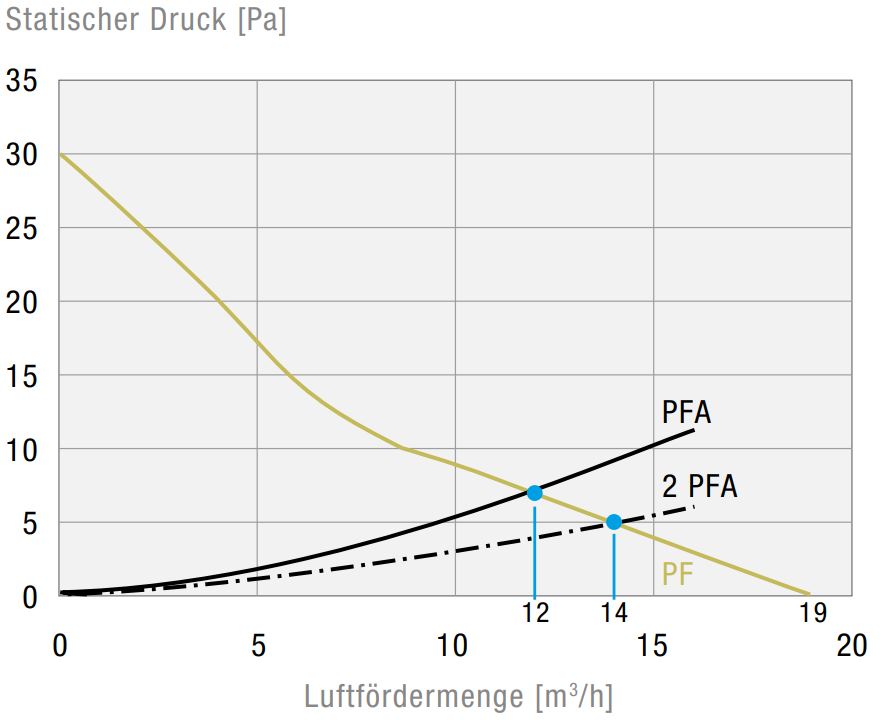

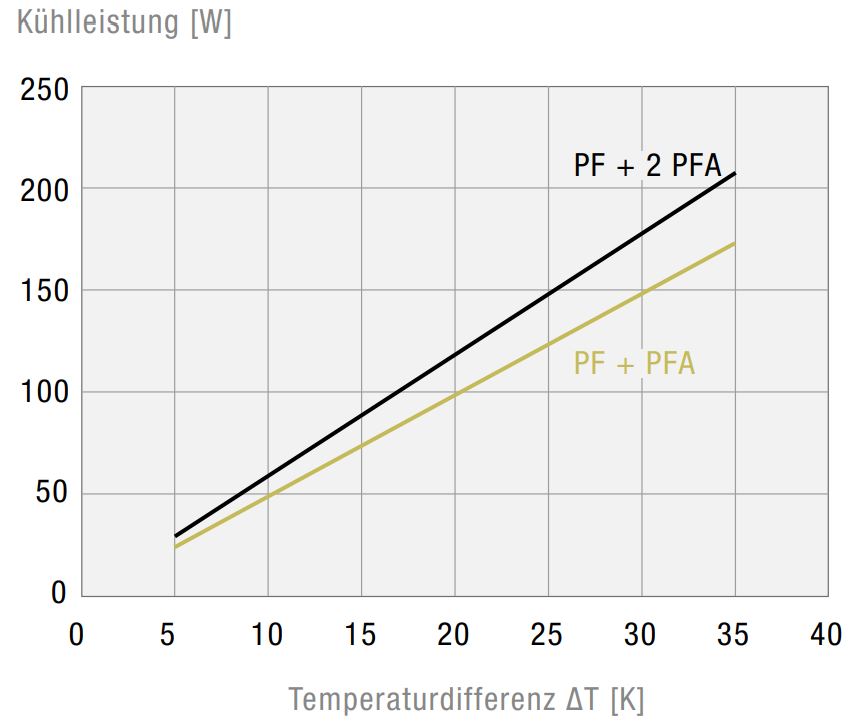

Unimpeded airflow: 19 m³/h
Airflow rate in comb. with exhaust filter: 12 m³/h
Number of Fans: 1
Power consumption W: 2,4 W | 2,4 W
Type of connection: cable, 2-core, length 310 mm
Type of fuse | Pre fuse: gG | 6 A
IP Protection: IP54
NEMA Protection: TYPE12
Type of filter: fleece filter mat
Filtration efficiency: 88 %
Filter mat quality class according to EN 779: G4
Bearing Type: sleeve bearing
Service life L10 (+ 40 °C): 70,000h h
Ambient temperature range: -40 °C ... +55 °C
Housing material: made of injection-moulded thermoplastic, self-extinguishing, UL 94 VO!!!
EMC-Version: no
Increased UV-stability of cover: no
Color: RAL 7035
Dimensions cut-out (H | W): 92 mm | 92 mm
Dimensions (H | W | D): 109 mm | 109 mm | 53 mm
Width: 109 mm
Depth: 53 mm
Height: 109 mm
Installation depth: 49 mm
Weight (without packaging): 0,16 kg
UL certificate no.: E489500
ETIM-Class: EC000320
Rated voltage V ±10 %: DC 24 / 24 V
Rated frequency Hz ±1 %: DC
Unimpeded airflow: 11 cfm | 17 cfm
Airflow in combination: 7 cfm | 11 cfm
Number of Fans: 1
Power consumption W: 2,4 W | 2,4 W
Type of connection: cable, 2-core, length 310 mm
Type of fuse | Pre fuse: gG | 6 A
NEMA Protection: TYPE12
Type of filter: fleece filter mat
Filtration efficiency: 88 %
Filter mat quality class according to EN 779: G4
Bearing Type: sleeve bearing
Service life L10 (+ 40 °C): 70,000h h
Ambient temperature range: -40 °F ... +131 °F
Housing material: made of injection-moulded thermoplastic, self-extinguishing, UL 94 VO!!!
EMC-Version: no
Increased UV-stability of cover: no
Color: RAL 7035
Cut-Out Dimensions: 3.62 in. | 3.62 in.
Dimensions (H | W | D): 4.29 in. | 4.29 in. | 2.09 in.
Width: 4.29 in.
Depth: 2.09 in.
Height: 4.29 in.
Installation depth: 2.44 in.
Weight (without packaging): 0.35 lbs
UL certificate no.: E489500
ETIM-Class: EC000320
